Model list
| Model |
pouch width |
pouch length |
filly capacity |
packaging capacity |

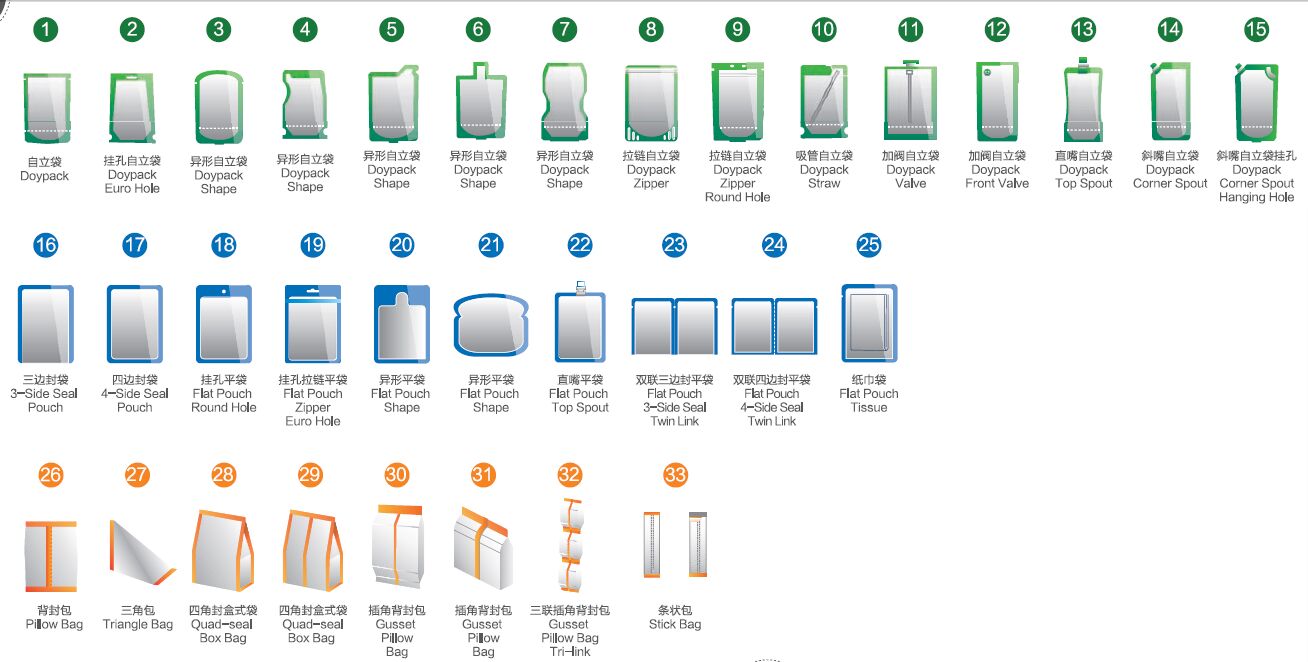

TIPO DE BOLSA SALIDA |
Power |
Weight |
Air consumption |
Machine dimensions |
| LCD-130 |
60-130mm |
80-190mm |
160ml |
35-45ppm |
doy pack,shape |
6KW |
1000kg |
300NL/min |
4500*940*2150mm |
| LCD-240 |
80-120mm |
120-250mm |
500ml |
80-100ppm |
doy pack,shape |
11KW |
2800kg |
400NL/min |
7500*1250*1550mm |
| LCD-180 |
90-180mm |
110-250mm |
1000ml |
40-60ppm |
doy pack,shape,hanging hole |
9kw |
2100kg |
300NL/min |
6000*1100*1500mm |
| LCD-180Ⅱ |
90-180mm |
110-250mm |
1000ml |
40-60ppm |
doy pack,shape,hanging hole,zipper |
9kw |
2100kg |
300NL/min |
6000*1100*1500mm |
| LCD-180Ⅲ |
90-180mm |
110-250mm |
1000ml |
40-60ppm |
doy pack,shape,hanging hole,spout |
9kw |
2100kg |
300NL/min |
6000*1100*1500mm |
| LCD-240 |
100-240mm |
120-320mm |
1500ml |
40-60ppm |
doy pack,shape,hanging hole |
11Kw |
2800kg |
400NL/min |
8700*1250*1550mm |
| LCD-240Ⅱ |
100-240mm |
120-320mm |
1500ml |
40-60ppm |
doy pack,shape,hanging hole,zipper |
11Kw |
2800kg |
400NL/min |
8700*1250*1550mm |
| LCD-240Ⅲ |
100-240mm |
120-320mm |
1500ml |
40-60ppm |
doy pack,shape,hanging hole,spout |
11Kw |
2800kg |
400NL/min |
8700*1250*1550mm |
| LCD-280Ⅱ |
90-140mm |
110-250mm |
600ml |
90-120ppm |
doy pack,shape,hanging hole |
15.5kw |
3200kg |
400NL/min |
10120*1210*1500mm |
| LCD-280Ⅲ |
90-140mm |
110-250mm |
600ml |
90-120ppm |
doy pack,shape,hanging hole,zipper |
15.5kw |
3200kg |
400NL/min |
10120*1210*1500mm |
| LCD-280Ⅳ |
90-140mm |
110-250mm |
600ml |
90-120ppm |
doy pack,shape,hanging hole,spout |
15.5kw |
3200kg |
400NL/min |
10120*1210*1500mm |
| LCP-180 |
60-180mm |
80-225mm |
400ml |
60-80ppm |
Flat pouch,3/4side seal, hanging Hole,zipper Euro hole,shape,trop spout |
2.3kw |
800kg |
200NL/min |
2250*970*1400mm |
| LCP-180Ⅱ |
60-180mm |
90-225mm |
400ml |
120-160ppm |
Flat pouch,3/4side seal, hanging Hole,zipper Euro hole,shape,trop spout |
2.3kw |
800kg |
200NL/min |
2250*970*1400mm |
| LCP-210 |
90-210mm |
110-300mm |
1200ml |
40-60ppm |
Flat pouch,Doy pack,zipper |
4.5kw |
1100kg |
350NL/min |
3200*980*1400mm |
| LCP-240 |
100-240mm |
120-320mm |
1500ml |
40-60ppm |
Flat pouch,Doy pack,zipper |
4.5kw |
1100kg |
350NL/min |
3200*980*1400mm |
| LCP-280 |
90-140mm |
110-260mm |
800ml |
90-120ppm |
Flat pouch,Doy pack |
4.5kw |
2000kg |
500NL/min |
5100*980*1400mm |
| LCP-280Ⅱ |
90-140mm |
110-260mm |
800ml |
90-120ppm |
Flat pouch,Doy pack,zipper |
4.5kw |
2000kg |
500NL/min |
5100*980*1400mm |
| LCS-180 |
60-180mm |
80-225mm |
400ml |
60-80ppm |
3 side seal,4 side seal |
4.5kw |
1600kg |
200NL/min |
3900*970*1450mm |
| LCS-180Ⅱ |
60-90mm |
80-225mm |
100ml |
120-160ppm |
3 side seal,4 side seal,Twin-link |
4.5kw |
1600kg |
200NL/min |
3900*970*1450mm |
| LCS-210 |
60-105mm |
90-225mm |
150ml |
120-160ppm |
3 side seal,4 side seal |
4.5kw |
1600kg |
200NL/min |
3900*970*1450mm |
| LCS-240 |
70-120mm |
100-225mm |
180ml |
100-160ppm |
3 side seal,4 side seal |
4.5kw |
1600kg |
200NL/min |
3900*970*1450mm |
| LCS-110 |
50-110mm |
50-130mm |
60ml |
60-80ppm |
3 side seal,4 side seal |
3.5kw |
800kg |
100NL/min |
2850*940*1400mm |
| LCS-130 |
60-140mm |
80-180mm |
160ml |
60-80ppm |
3 side seal,4 side seal |
3.5kw |
800kg |
100NL/min |
2850*940*1400mm |
|
